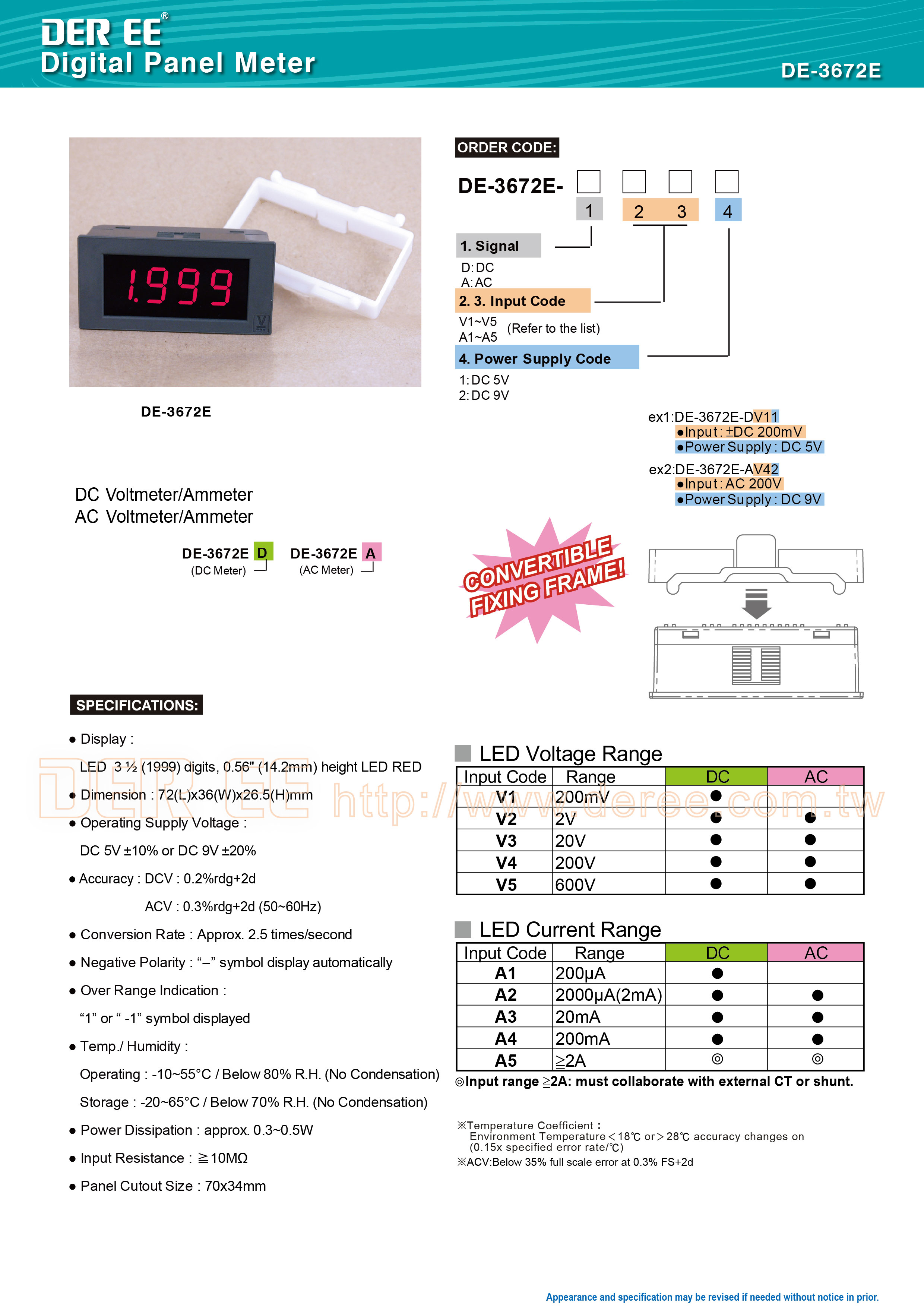

DE-3672E LED 數位錶頭
DE-3672EA LED AC Voltmeter / Ammeter
Accuracy:DCV:0.2% rdg+2d, ACV:0.3% rdg+2d (50~60Hz)
- Display:LED 3 ½ (1999) digits, 0.56" (14.2mm) height LED RED
- Operating Supply Voltage:DC 5V ±10% or DC 9V ±20%
-
Accuracy:DCV:0.2% rdg+2d
ACV:0.3% rdg+2d (50~60Hz) - Conversion Rate:Approx. 2.5 times / second
- Negative Polarity:“-” symbol display automatically
- Over Range Indication:“1” or “ -1” symbol displayed
- Power Dissipation:approx. 0.3~0.5W
- Input Resistance:≧10MΩ
LED Voltage Range:
Input Code |
Range |
DC |
AC |
V1 |
200mV |
● |
|
V2 |
2V |
● |
● |
V3 |
20V |
● |
● |
V4 |
200V |
● |
● |
V5 |
600V |
● |
● |
LED Current Range:
Input Code |
Range |
DC |
AC |
A1 |
200uA |
● |
|
A2 |
2000uA(2mA) |
● |
● |
A3 |
20mA |
● |
● |
A4 |
200mA |
● |
● |
A5 |
≧2A |
◎ |
◎ |
◎Input range ≧2A:must collaborate with external CT or shunt.
Temp./ Humidity :
- Operating:-10~55°C / Below 80% R.H. (No Condensation)
- Storage: -20~65°C / Below 70% R.H. (No Condensation)
Dimension:
- Dimension:72x36x26.5mm
Panel Cutout Size:
- 70x34mm
- DE-3672ED LED DC Voltmeter / Ammeter
- DE-3672EA LED AC Voltmeter / Ammeter
